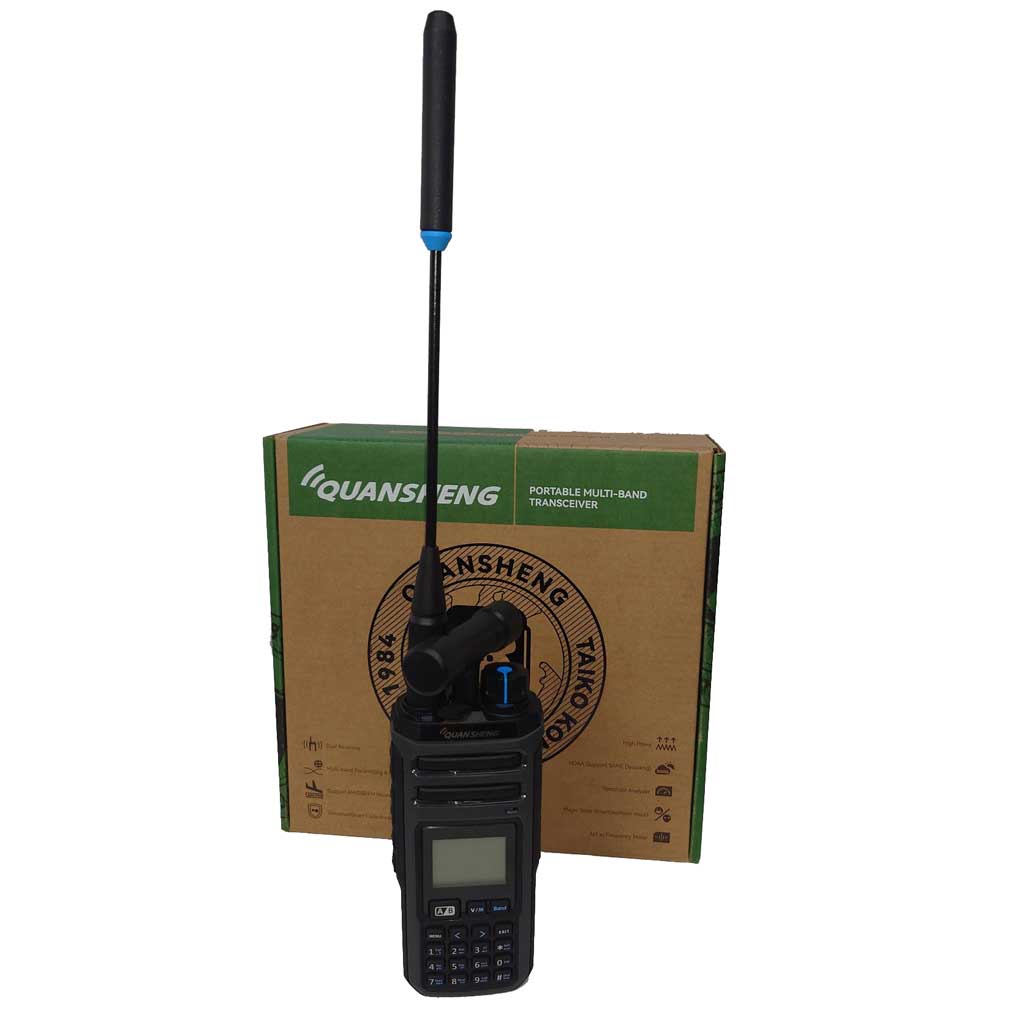

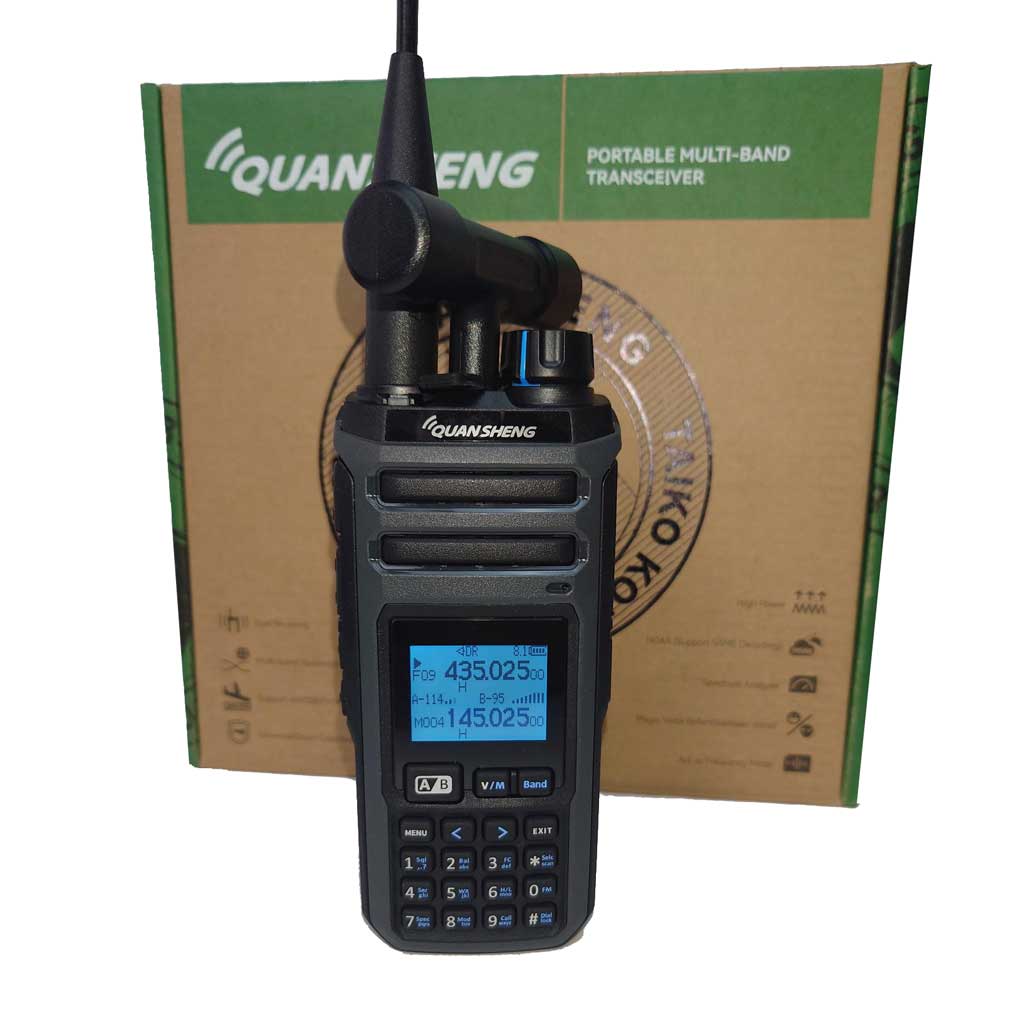

Quansheng TK11 (5) Wideband Handheld Transceiver

Quansheng TK11 (5) Wideband Handheld Transceiver

SKU:TK11

Regular price £69.95 GBP
Regular price Sale price £69.95 GBP
Sale Sold out
Taxes included.

***PLEASE NOTE THAT WE CAN ONLY SHIP HANDHELD RADIOS TO UK MAINLAND ADDRESSES DUE TO INTERNATIONAL POSTAL RESTRICTIONS ON THE CARRIAGE OF LITHIUM-ION BATTERIES BY AIR***

Quansheng is one of China's leading handheld transceiver manufacturers - their TG-UV2 dual bander was the first Chinese handheld of its kind to achieve CE certification back in 2008.

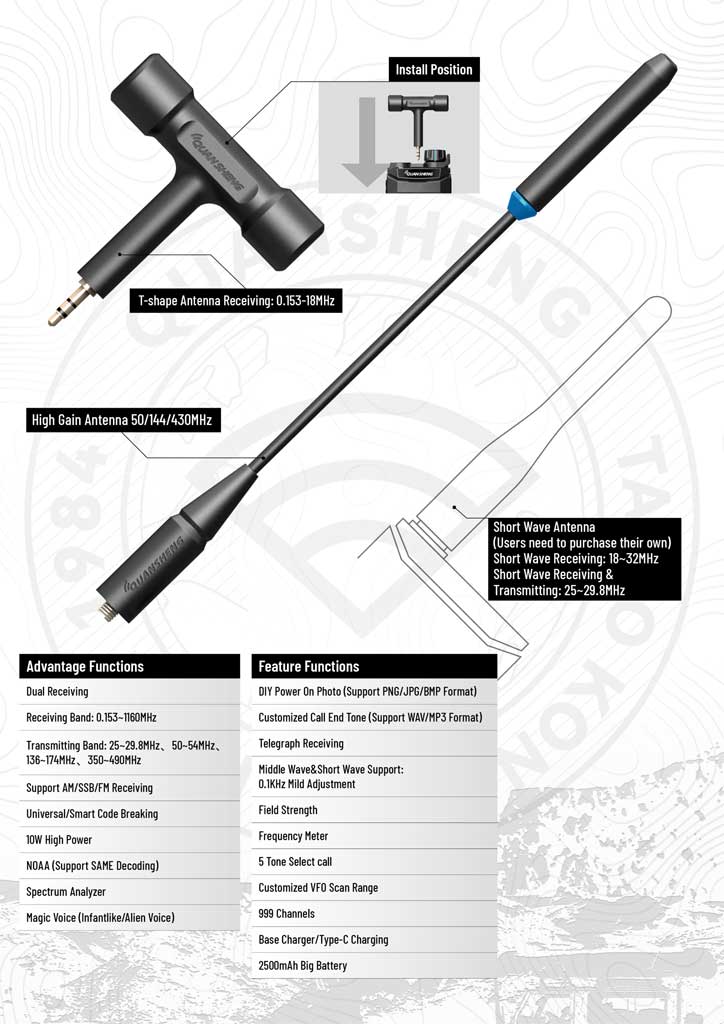

The much-anticipated TK11 is finally here, with a feature set unrivalled by any other handheld.  These include wideband reception (from 0.153 to 1160 MHz), AM, FM and SSB decoding, a separate T-shaped antenna for receiving signals up to 18 MHz, a spectrum analyser and up to 10 W RF output depending on the band.

Transmit frequencies are 25-29.8, 50-54, 136-174 and 350-490 MHz, where permitted.

The TK11 is CE- and FCC-approved and ROHS compliant. Key features include a robust black & grey plastic housing, an excellent tri-band antenna measuring approximately 240  mm in length, USB-C charging capability and a 7.4 V lithium-ion battery with a 2500 mAh rating.

PLEASE NOTE THAT THE TK11 IS SUPPLIED WITH A TWO-PIN EURO STYLE CHARGER. A TWO-TO-THREE-PIN ADAPTER (SUCH AS A SHAVER ADAPTER) IS REQUIRED FOR USE IN THE UK.

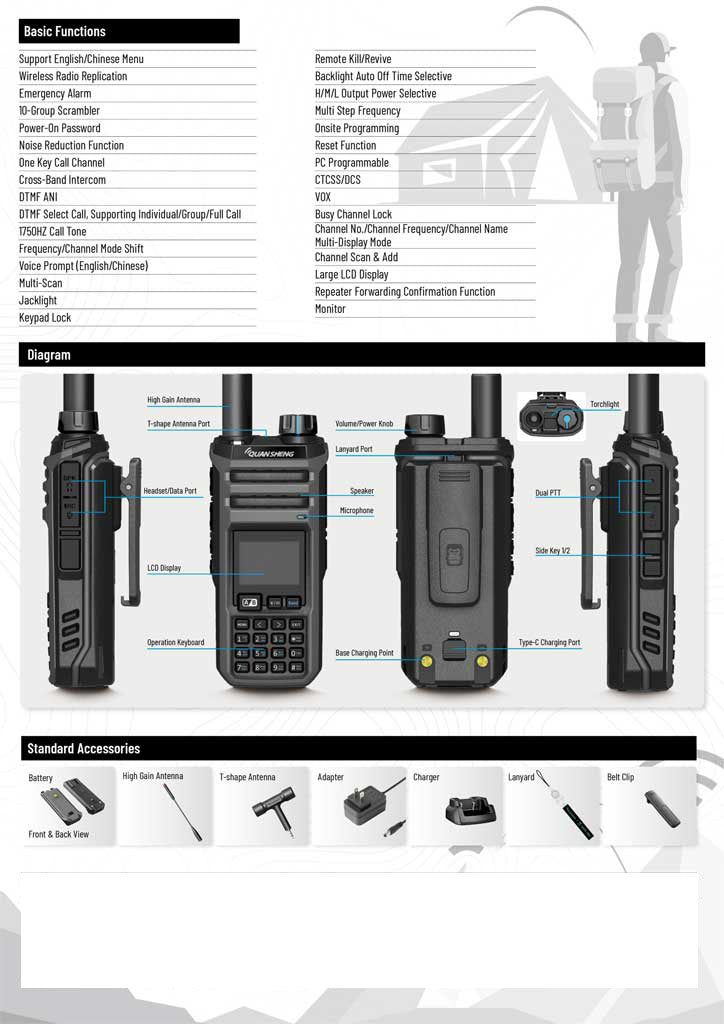

Features

Dual-Band
Dual Frequency Display
Dual Watch Facility
High/Low Output Power (5/1 Watts)
Numeric Keypad for direct frequency input
Switchable Voice Prompt
999 Easily Programmable Memory Channels
50 CTCSS and 105 DCS Programmable Tones
VOX Function
1750 Hz Burst Tone for Repeater Activation
FM Radio Function (65.0 MHz-108.0 MHz)
Airband receive function
Removable 240 mm Antenna (SMA Female type)
Removable T-type reception antenna
Built In LED torch with emergency flash function
Large Two Line Alphanumeric LCD Display with blue backlight
Low Battery Alert
Battery Saver Feature
Transmission Timeout Timer
Keypad Lock
Selectable Channel Steps: 2.5/5/6.25/10/12.5/25 kHz
DTMF Tone Generator
Windows PC programmable via optional USB Cable

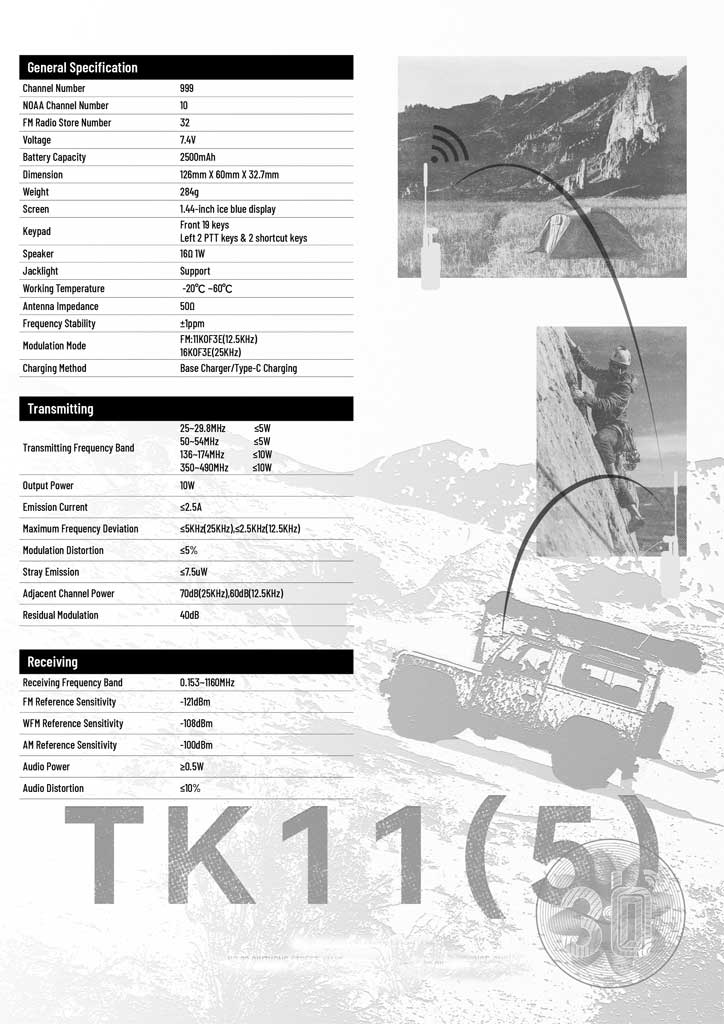

Specifications

General
Frequency Coverage (RX) 0.153-1160 MHz
Memory Channels 999
Antenna Connector SMA Male
Frequency Step (selectable) 2.5/5/6.25/10/12.5/25 kHz
Battery Voltage 7.4 V
Battery Capacity 2500 mAh
Frequency Stability (-20° to +50° C) +/- 1 ppm
Operating Temperature -20° to +60° C
Antenna Impedance 50 ohms
Dimensions (W x H x D) 60 x 126 x 32.7 mm
Weight (with battery & antenna) 284 g

Transmitter
Frequency Coverage (TX) @ RF Power Output
25-29.8 MHz ≤5 W
50-54 MHz ≤5 W
135-174 MHz ≤10 W
350-490 MHz ≤10 W
Spurious Radiation <7.5 μW
Adjacent Channel Selectivity (W/N) 70 dB/60 dB
Maximum Frequency Deviation (W/N) ≤5 kHz/≤2.5 kHz
Modulation Distortion ≤5 %
Emission Current ≤2.5 A

Receiver
Sensitivity (12 dB SINAD)
FM -121 dBm
WFM -108 dBm
AM -100 dBm
Audio Output Power (8 ohms) 0.5 Watt
Audio Distortion <10%


All specifications subject to change without notice

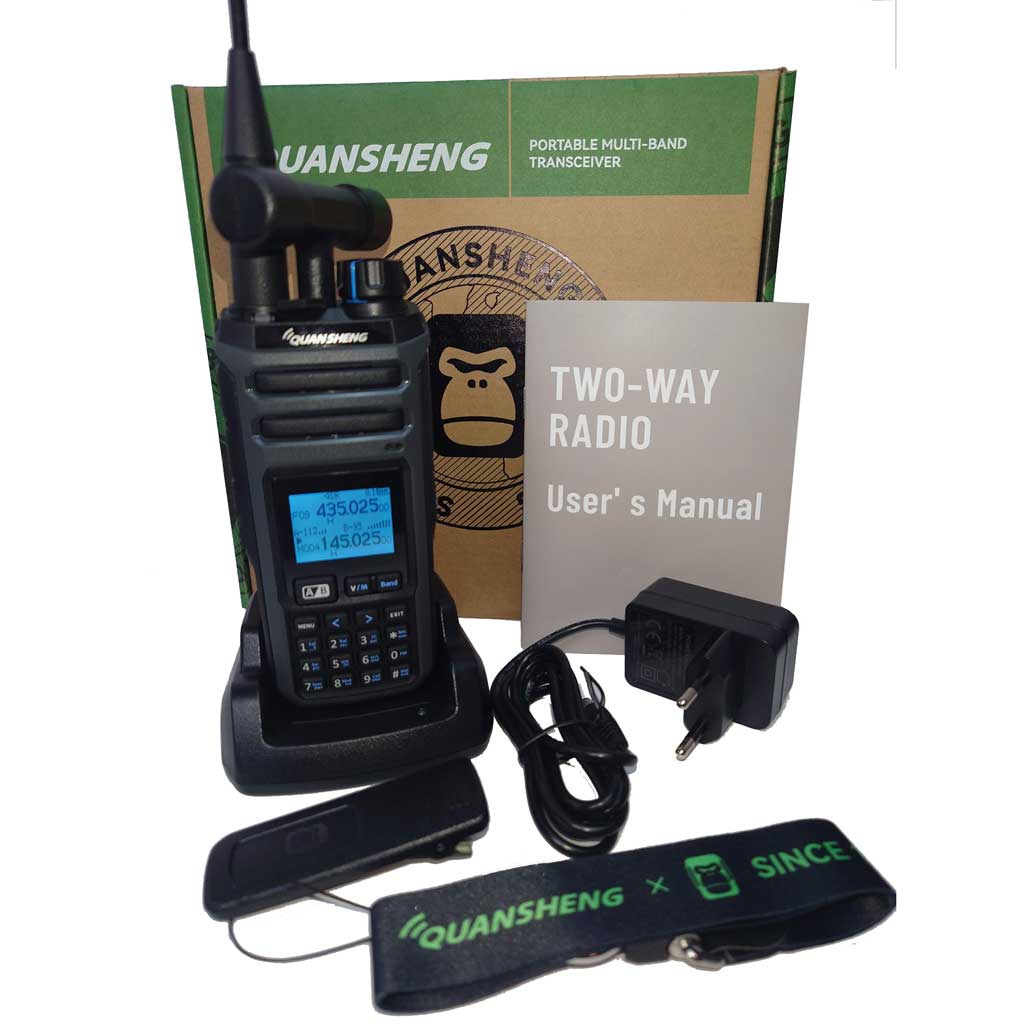

Contents

1 x Quansheng TK11 (5) Handheld Transceiver
1 x 2500 mAh Lithium-ion Battery
1 x 240 mm Tri-band Antenna
1 x T-shaped Receiving antenna
1 x Belt Clip
1 x Lanyard
1 x English Instruction Manual
1 x Drop-in Charger with Euro type two-pin mains plug

Dimensions & Weight

790 g 21.5 x 22.5 x 8.5 cm
