Xiegu X6100 10 Watt HF & 6 m Amateur SDR Transceiver

Xiegu X6100 10 Watt HF & 6 m Amateur SDR Transceiver

X6100

£559.95 GBP
£559.95 GBP
Sale Sold out
Tax included.

SHIPPING TO UK ONLY

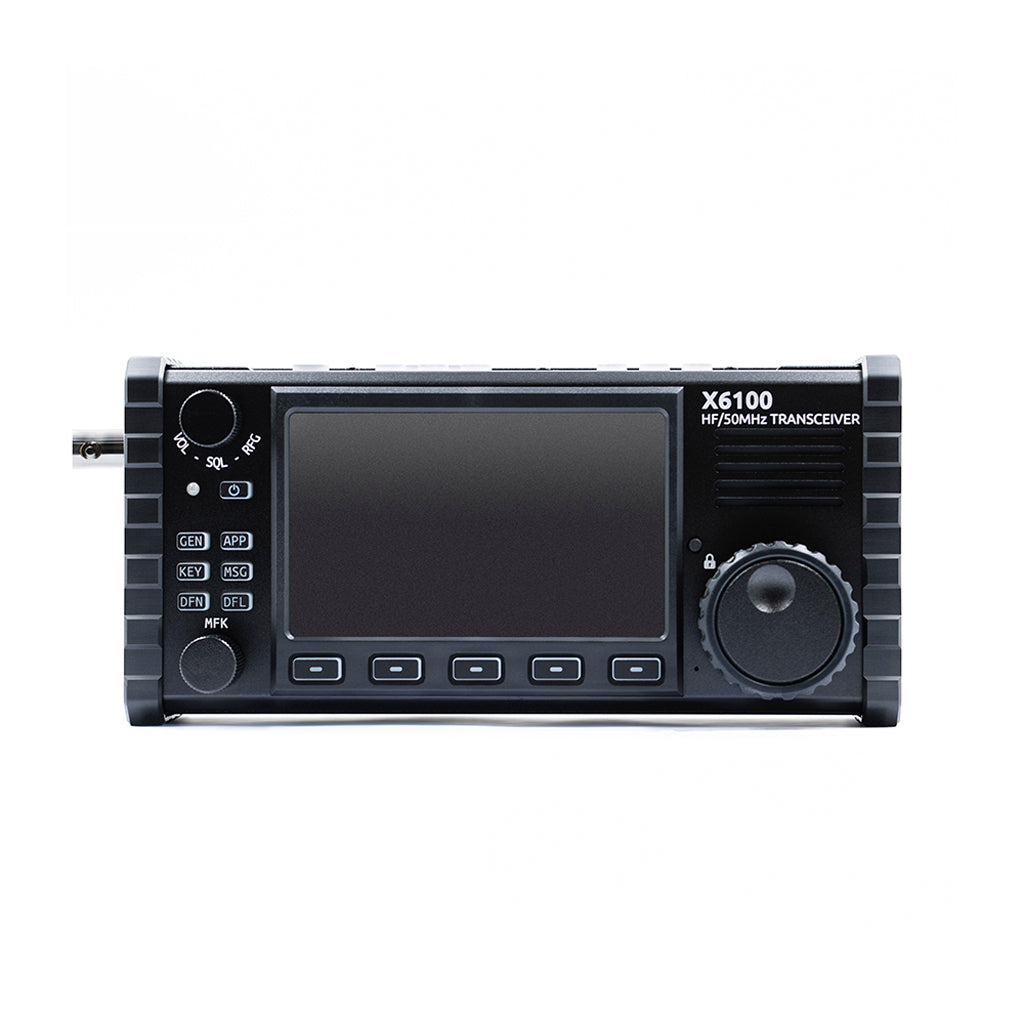

Xiegu's new X6100 is an ultra-portable HF & 50 MHz (6 m) SDR transceiver with a large 100 mm (4") full colour display and an internal 3000 mAh rechargeable battery for portable use. RF output is 10 W maximum when running on external power, 5 W maximum using the internal battery.

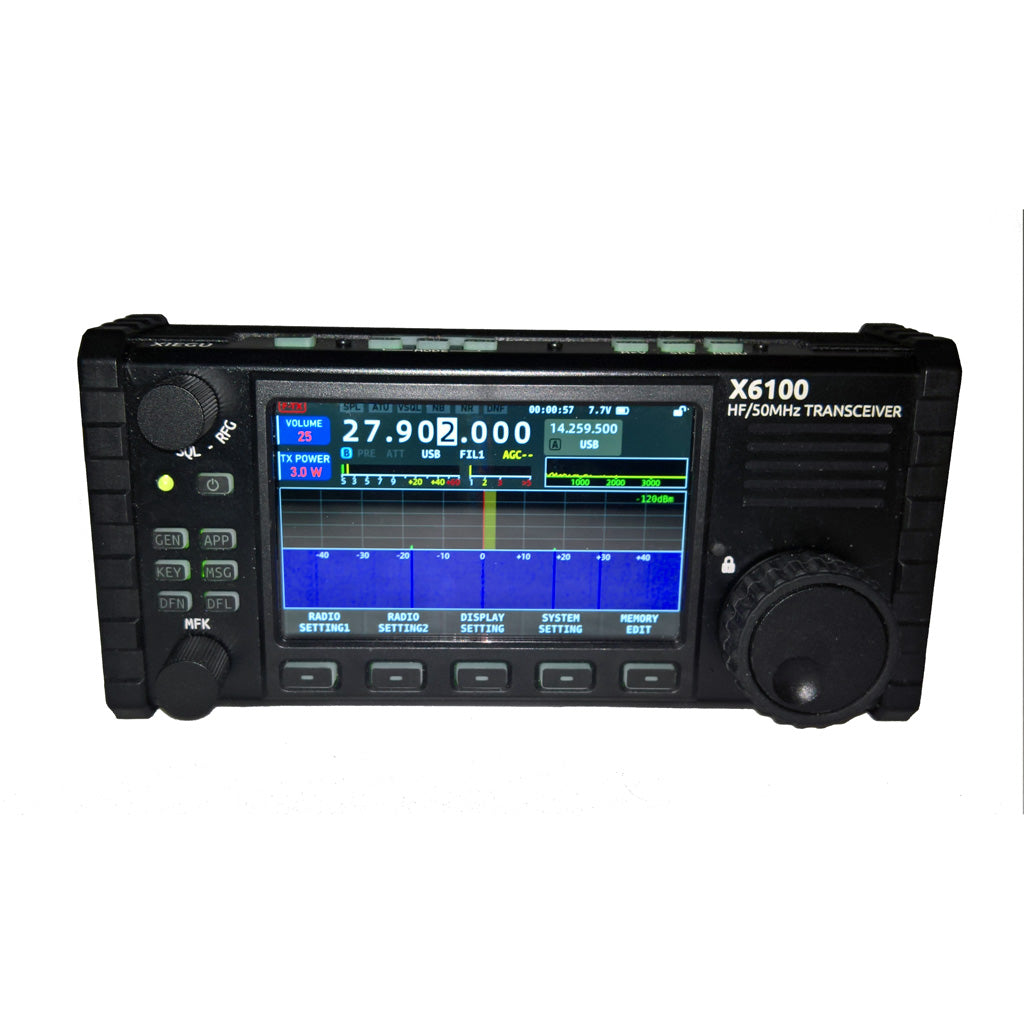

The X6100 boasts an inbuilt ATU that can match antennas up to an SWR of 1:5. The colour display incorporates a spectrum/waterfall display, and all operating information required is clearly presented.

A 13.8 V regulated DC power supply capable of delivering at least 3A continuous (not included) is recommended for charging and external power.

The compact size, light weight and internal battery of the X6100 will endear it to portable operators. Another useful feature is the pair of flip-out legs, allowing the rig to be positioned at an ideal operating angle. An adjustable digital noise reduction system and noise blanker help to combat unwanted interference, and an adjustable digital filter with three presets is also part of the package.

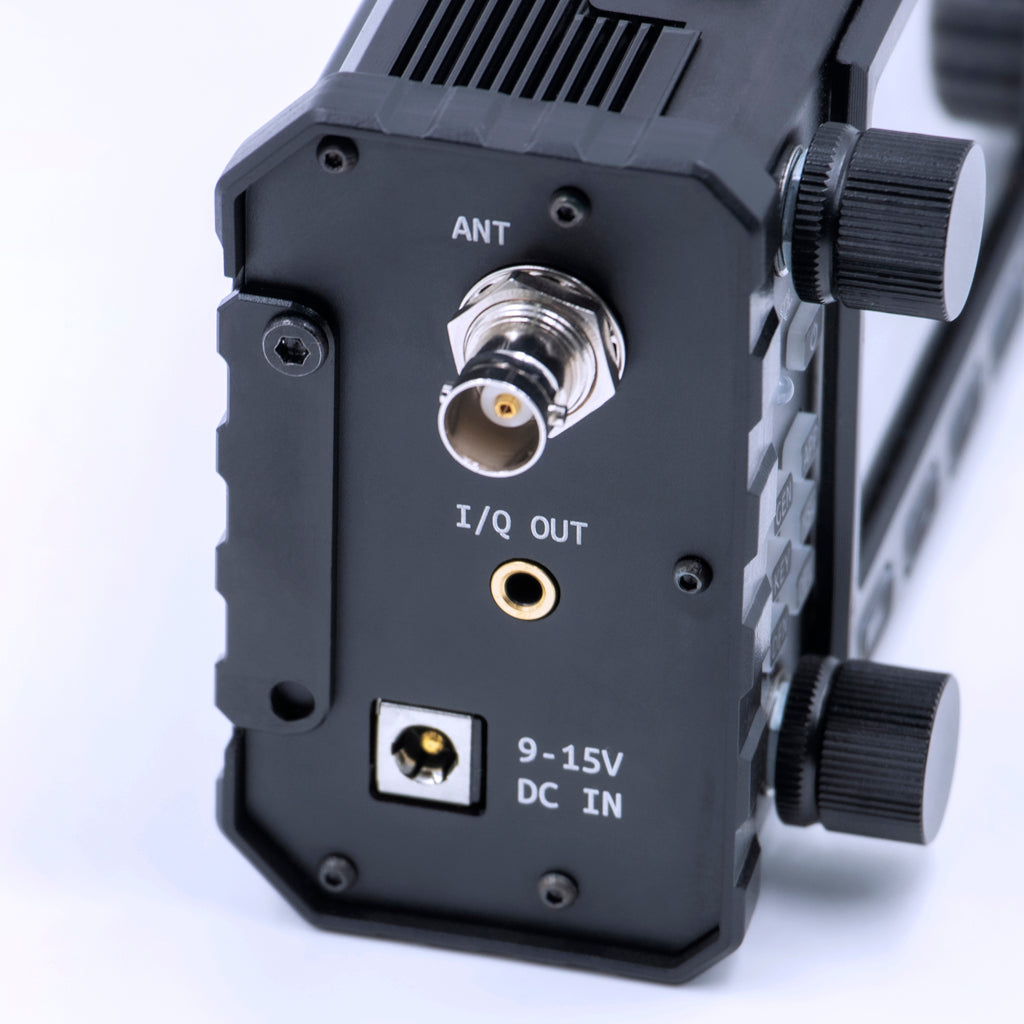

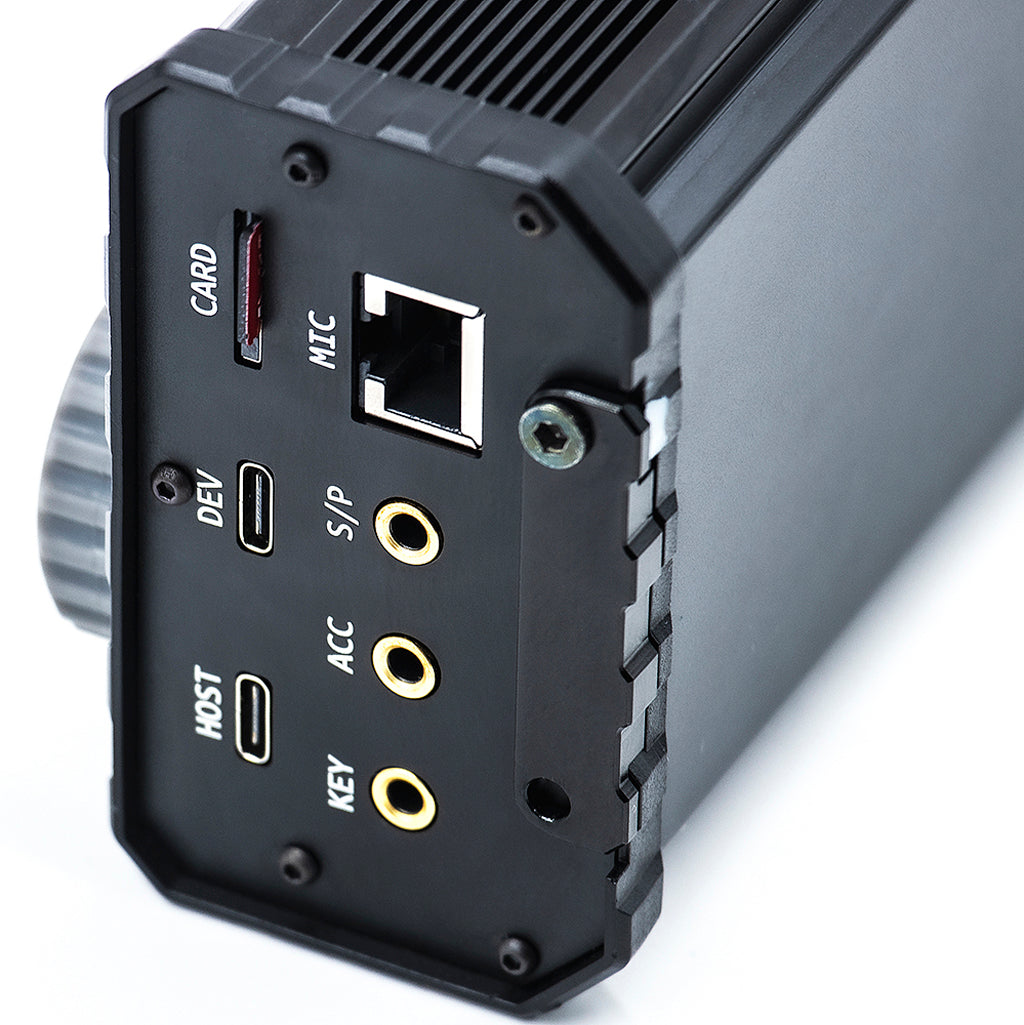

The X6100 has an inbuilt high stability 1 ppm TCXO, an SWR scanning facility and an internal modem for data communications. Connectivity options include traditional ports, USB type C, and WiFi and Bluetooth to allow for wireless audio, keyboards and mice. A micro-SD card slot is provided for firmware updates (a card is not included, we recommend using one of 16GB capacity).

In addition to voice modes (AM, NFM, LSB & USB), the X6100 can also be operated on CW. It has a built in keyer and the facility to store short CW messages.

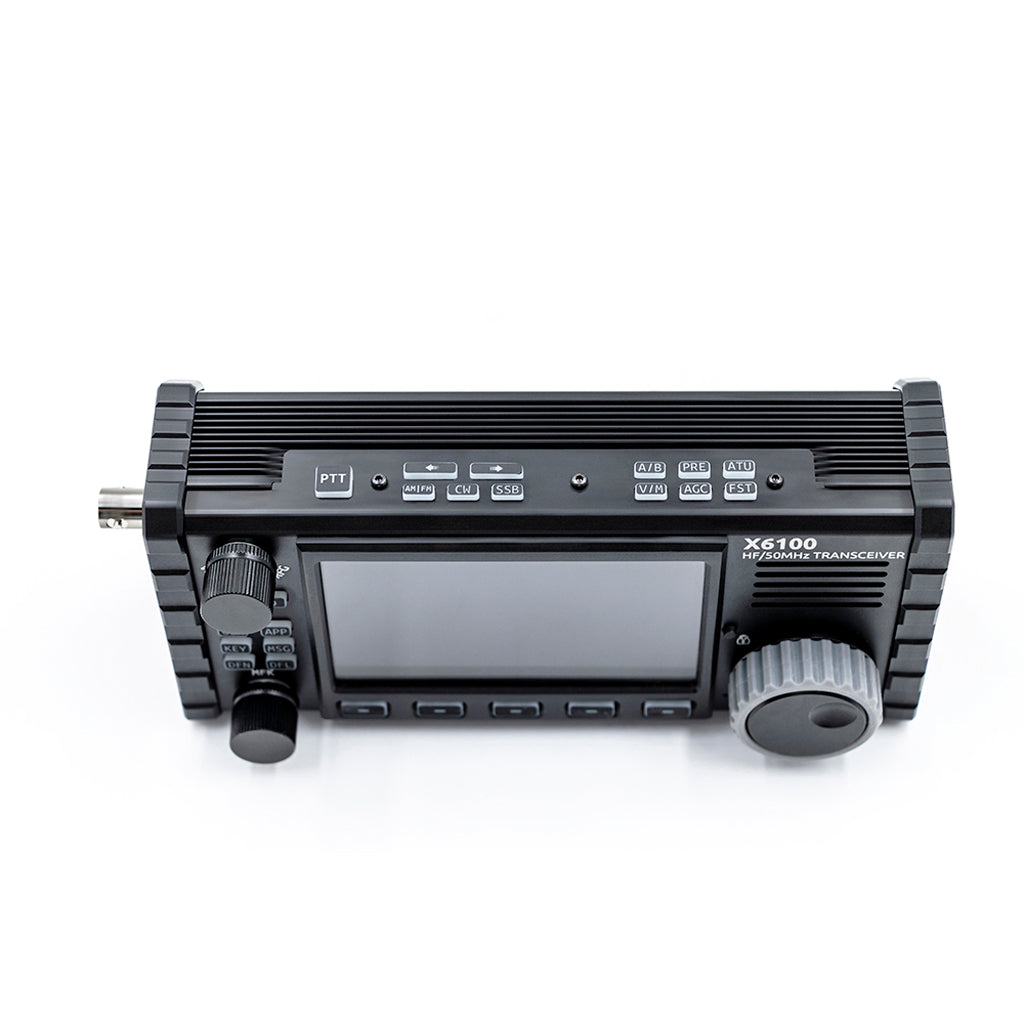

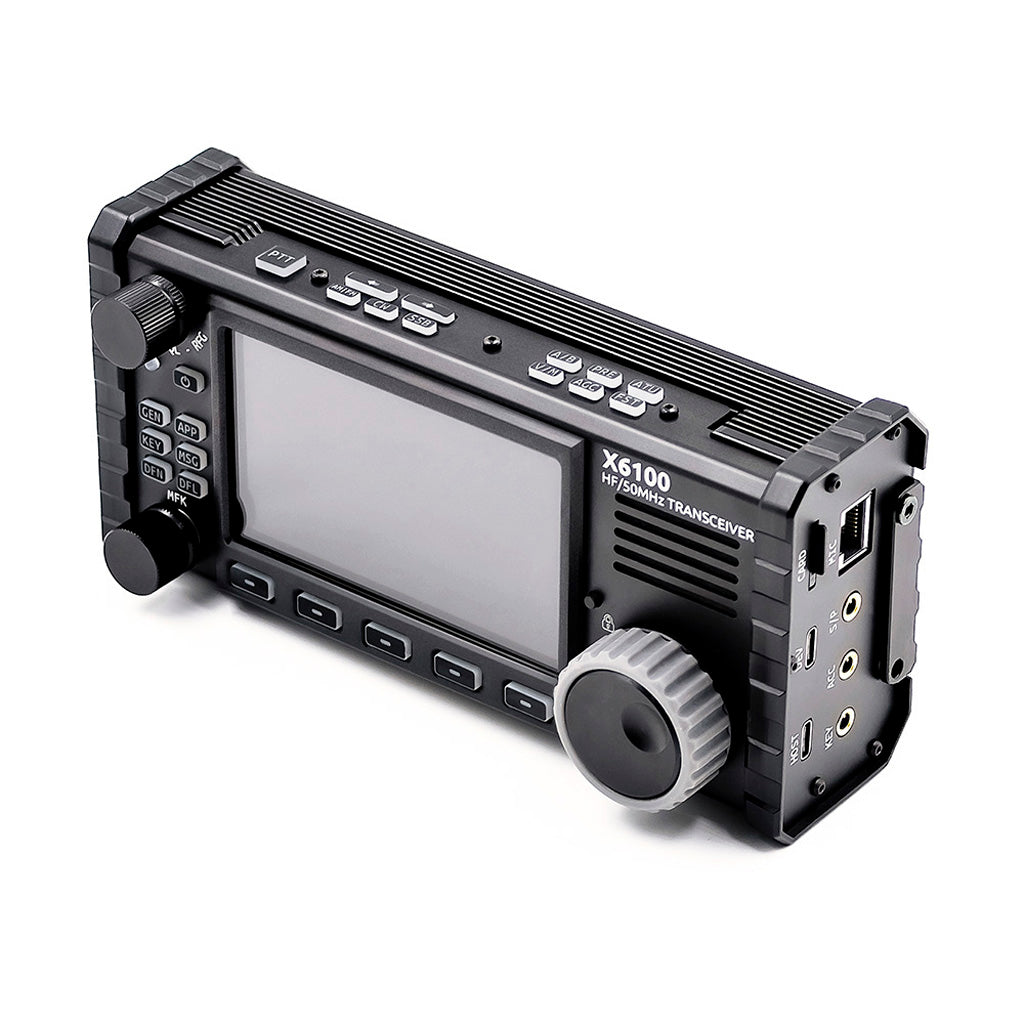

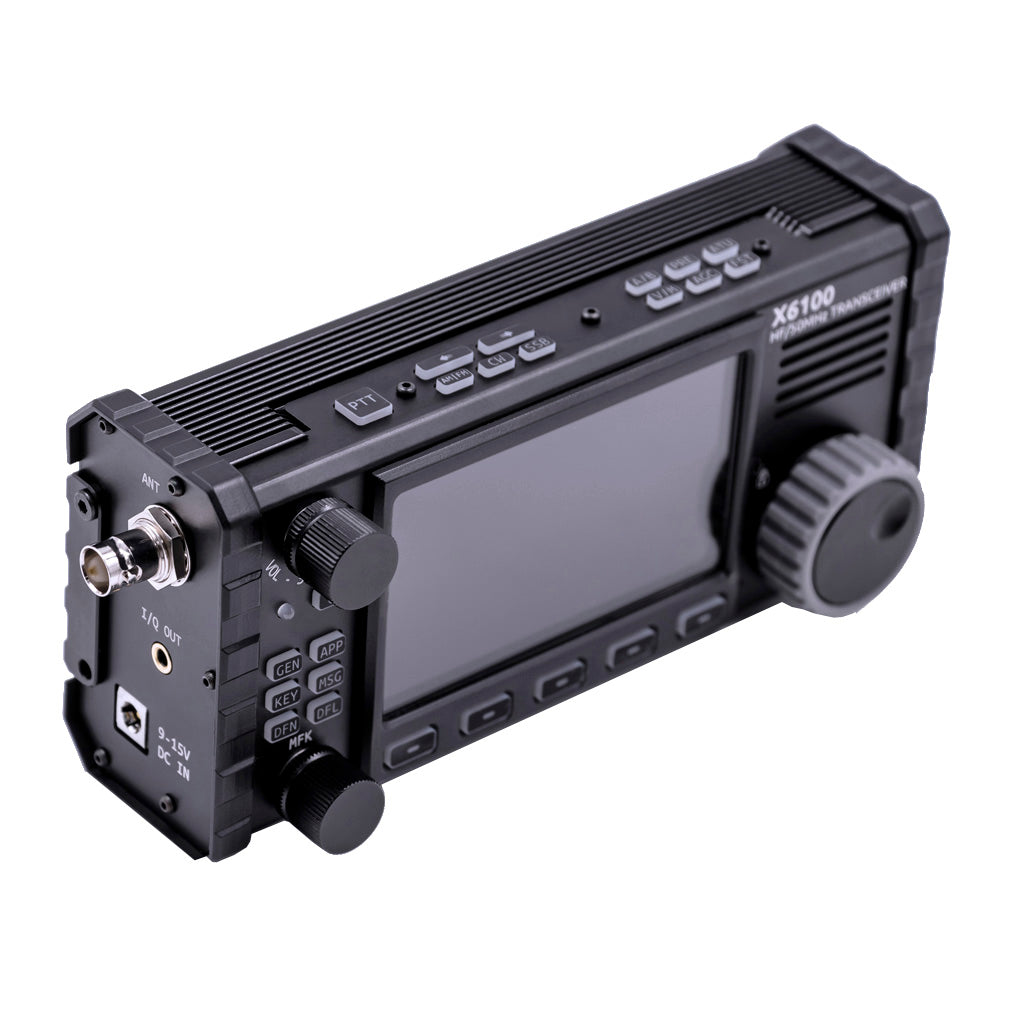

The housing of the X6100 is a sturdy but lightweight aluminium extrusion, which incorporates a heatsink. It measures only 180 x 86 x 49 mm and weighs just 985 g including microphone.


A video of the radio in operation (courtesy of 2E0BVJ) can be seen here.

There are several Facebook groups dedicated to Xiegu transceivers which can be found by searching for "Xiegu" at www.facebook.com. They represent an invaluable source of information and first-hand experience for Xiegu owners and we highly recommend seeking them out.

Please click on the links below for specifications and features.

Features

- SDR Structure

- HF/50MHz Full Mode (including data communication)

- TX Power: External power supply: 10W (max)/Battery power: 5W (max)

- 4" Colour Screen, 800 x 480 resolution

- Built-in 3000mAh Lithium Battery

- Built-in Automatic Antenna Tuner

- Integrated SWR Scanner and Voice Call

- Internal Modem, Pre-set message storage, CW Automatic Call option

- Built-in Bluetooth/Wi-Fi function for wireless audio/keyboard/mouse

- Integrated USB CAT controller (USB-C)

- High stability internal TCXO

Specifications

General
- Frequency Range (RX): 0.5 MHz-30 MHz, 50 MHz-54 MHz

- Frequency Range (TX): 1.8-2.0 MHz | 3.5-4.0 MHz | 5.3305-5.405 MHz | 7.0-7.3 MHz | 10.1-10.15 MHz | 14.0-14.35 MHz | 18.068-18.168 MHz | 21.0-21.45 MHz | 24.89-24.99 MHz | 28.0-29.7 MHz | 50.00-54.00 MHz

- Operating Modes: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)

- Minimum Frequency Step: 10Hz

- External Power Supply Voltage: DC 9.0V~15.0V, negative ground

- Frequency Stability: ± 1ppm (measured 20 minutes after power-on)

- Antenna Impedance: 50Ω

- Antenna Connector: BNC female

- Operating Temperature range: 0℃-+55℃

- TX power: External power supply: 10W (max) | Battery power supply: 5W (max)

- Current consumption: Standby: 330mA (Max) | Transmit: 3A (Max)

- Dimensions (without protrusions): 180mm x 86mm x 49mm

- Screen size/resolution: 100 mm/800 x 480

- Weight, radio only: 840 g; with microphone and cable: 985 g

Transmitter
- TX Power, internal battery: 5W

- TX Power, external power supply: 10W

- Stray suppression ≥ 60dB

- Sideband suppression: ≥50dB

- SSB Frequency Response: 300-2700Hz (-6dB)

- FM Modulation Swing; +/- 5kHz

- Microphone Impedance: 0,2-10k (600 Ohm typical)

Receiver
- Circuit Type: ZIF

- Sideband Suppression: ≥50dB

- MDS: -138dB

Sensitivity:
- 0.5～1.79999MHz: 10uV (AM)

- 1.8～1.99999MHz: 0.35uV (SSB/CW) | 10uV (AM)

- 2.0～27.9999MHz: 0.20uV (SSB/CW) | 2uV (AM)

- 28.0～30.0MHz: 0.20uV (SSB/CW) | 0.22uV (FM) | 2uV (AM)

- 50.0 ~ 54.0MHz: 0.20uV (SSB/CW) | 0.22uV (FM) | 2uV (AM)

ATU
- Tuning impedance range: 12.5-200 Ohm

- Maximum VSWR: 1:5.0

- Initial tuning time: ≤15s

- Tuning read time: ≤0.2s

Contents

- 1 x X6100 transceiver

- 1 x multifunction hand microphone

- 1 x coiled microphone cable

- 1 x USB-A to USB-C CAT cable

- 1 x power lead (unfused)

- 1 x 12 V 1 A charger with Euro two-pin plug

- 1 x English instruction manual

- 1 x warranty card
