X108G 20 Watt HF Amateur Transceiver - Outdoor Version - Latest Revision with SWR analyser


Add to Cart:

The latest 2017 X108G Outdoor model from Chongqing Xiegu Technology incorporates a larger front panel display especially suited to outdoor operation. Boasting the latest in minimalist industrial design, the X108 is a compact single conversion HF transceiver covering 0.5 to 30 MHz. It offers radio amateurs high quality HF capability at a very affordable price.

Attention to detail abounds in the X108 the IF crystal filter stage, for instance, features customised military grade crystals for superb performance in both SSB (2.4 kHz) and CW (500 Hz) modes. Other features include a switchable AGC circuit, preamplifier and signal attenuator, RIT control for SSB use, and RF output power variable from 1 to 20 Watts. The front panel meter can display incoming signal strength, RF output power and VSWR, and the transceiver includes high VSWR protection circuitry to guard against potential damage to the output stage caused by antenna mismatching.

The RF output stage features imported RF MOS tubes and APC circuitry for constant output across all bands. A noise blanker (NB) module is included, as well as a high stability 0.5 ppm TCXO module.

A multi-function digital microphone is supplied as standard, allowing direct operation of many transceiver functions without the need to touch the front panel.

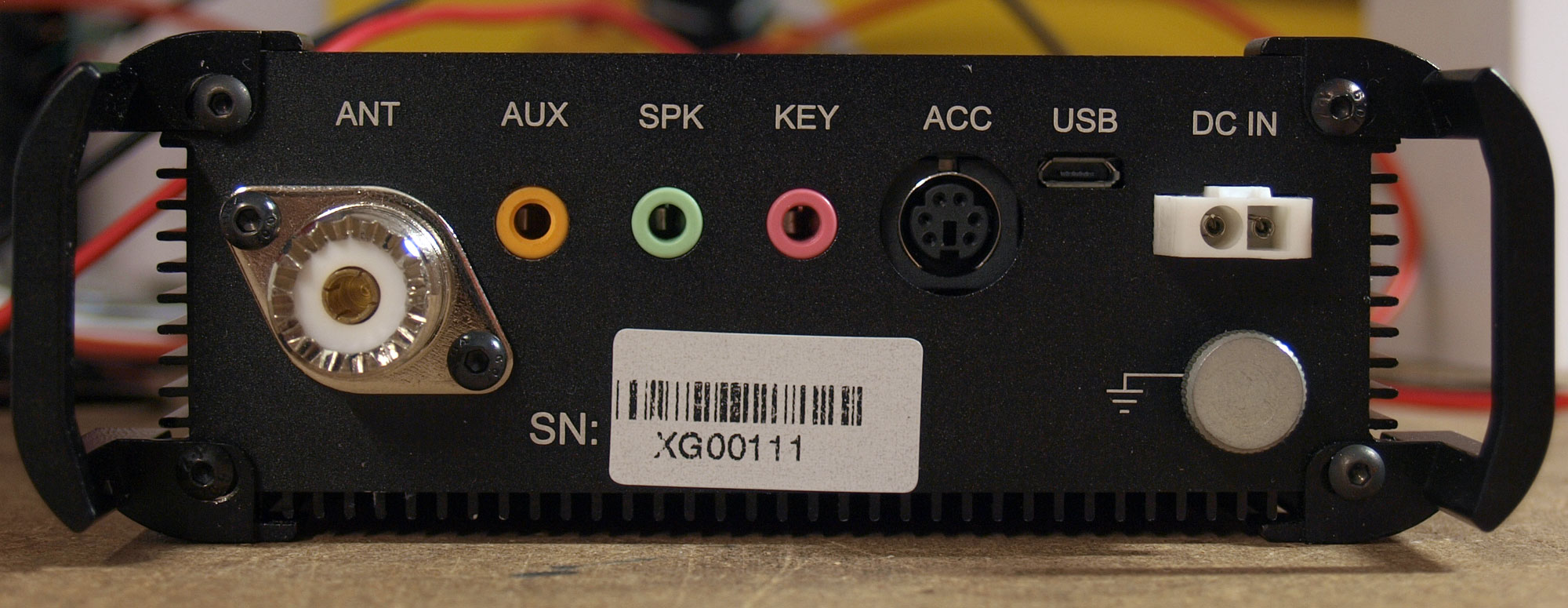

Up to 32 frequencies can be stored in the X108s memory bank, while a dedicated USB port is provided on the rear of the unit, allowing PC control via appropriate software with the use of a standard USB A-to-microUSB cable.

A video of the radio in operation (courtesy of 2E0BVJ) can be seen HERE.

Click HERE to visit the Xiegu Facebook group. Its members have a wealth of experience with the radio and are always very happy to share their knowledge with new- or prospective owners. There is also an active X108 Yahoo Group that can be found via any search engine.


Please click on the links below for specifications and features.

  • Model: X108G-OD
