X1M PLATINUM Compact 5-Band Amateur HF QRP Transceiver

£227.99

Add to Cart:

X1M PLATINUM Compact 5-Band Amateur HF QRP Transceiver



JUST ARRIVED - THE XPA20 COMPANION 20 WATT AMPLIFIER FOR THE X1M, SEE UNDER LINEAR AMPLIFIERS FOR DETAILS

The X1M Platinum is a compact HF QRP transceiver which provides a low-cost entry into the world of HF amateur radio. It is ideal for Foundation licence holders because of its low output power.


NB: The X1M can only be used for transmission purposes by appropriately licenced radio amateurs.










When used in conjunction with the optional CAT cable and Ham Radio Deluxe software, the X1M can be controlled from a Windows PC (the X1M emulates an Icom IC-718).


Despite its small size the X1M is a fully featured HF rig, boasting twin VFO's, built in CW keyer, switchable preamplifier and RIT control among others.


Please click on the links below for specifications and features.


  • Model: X1M

X1M FEATURES



Built in CW keyer & socket for external keyer

Dual VFO's

Two banks of 32 programmable memory channels

Switchable preamplifier circuit

Switchable RIT

Split mode operation

Key lock

Headphone socket

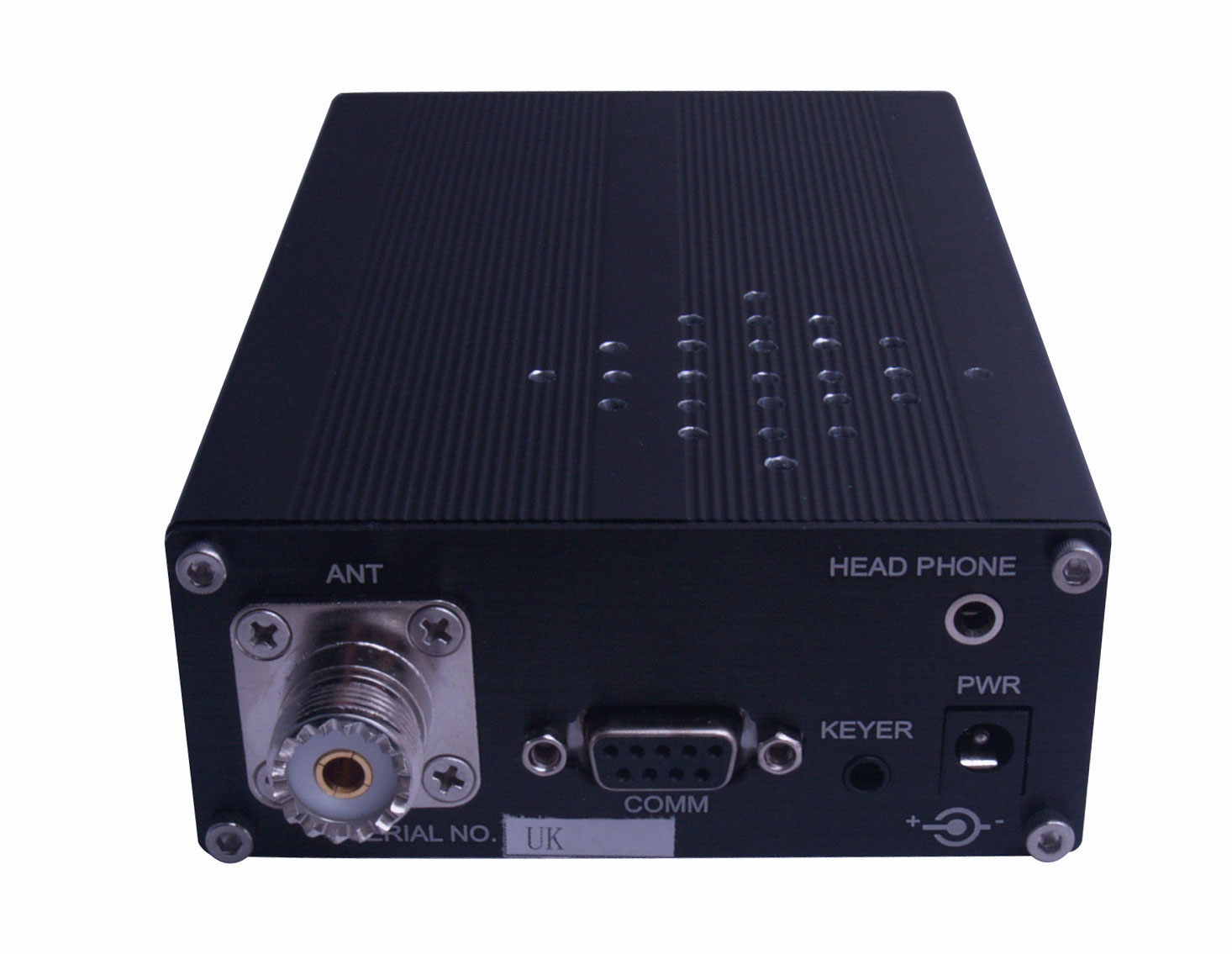

Built in DB9 serial port (TTL signal levels)

Optional CAT cable for PC control

SO 239 Antenna connector

X1M SPECIFICATIONS



Receive frequency range:

0.1 - 30 MHz

Transmit frequency range:

3.5 - 3.9 MHz
7.0 - 7.3 MHz
14.0 - 14.35 MHz
21.0 - 21.45 MHz
28.0 - 29.7 MHz

Transmission modes: SSB (A3J), CW (A1)

Receiver sensitivity: > 0.45 uV

TX output power:

Frequency stability: > 0.5 ppm

Frequency accuracy: >0.5 ppm (start up + 5 min)

Supply voltage: 12.0 - 13.8 V DC (external regulated DC power required)

Standby current draw: 0.5 A

TX current draw: 1.8 A Max

Dimensions: 97 x 40 x 155 mm

Weight: 605 g

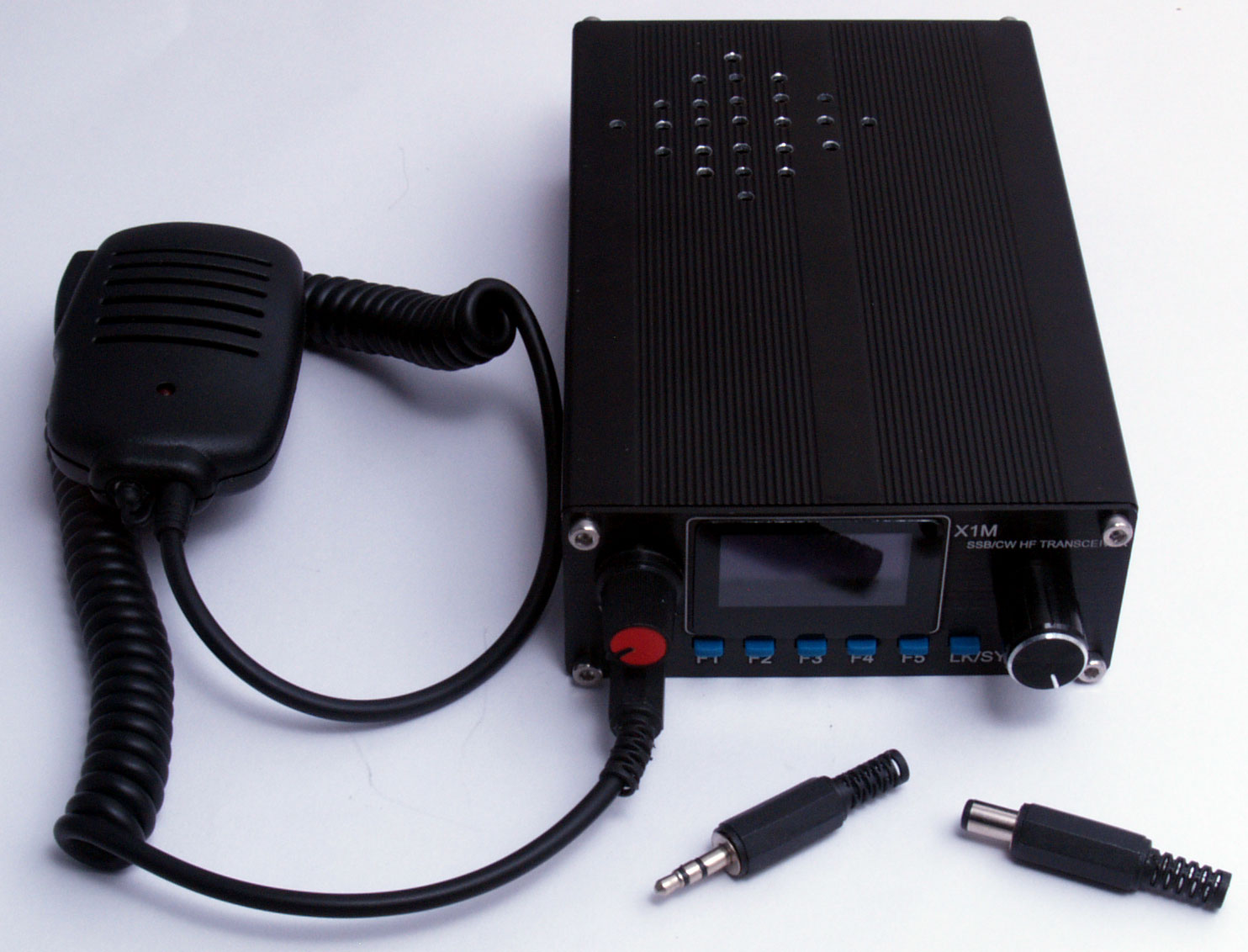

Package contents:



PACKAGE CONTENTS:

1 x X1M Platinum transceiver

1 x hand microphone

1 x power supply plug

1 x keyer plug

1 x instruction manual on CD
