Compact 50 mm Dualband 2m/70cm Antenna with SMA male connector

£4.99

Add to Cart:

Compact 50 mm Dualband 2m/70cm Antenna with SMA male connector for handheld transceivers

PLEASE NOTE: REDUCING THE LENGTH OF AN ANTENNA WILL UNAVOIDABLY IMPACT NEGATIVELY ON ITS PERFORMANCE, SO A SHORT ANTENNA LIKE THIS WILL NOT PERFORM AS WELL AS A FULL SIZE ONE.

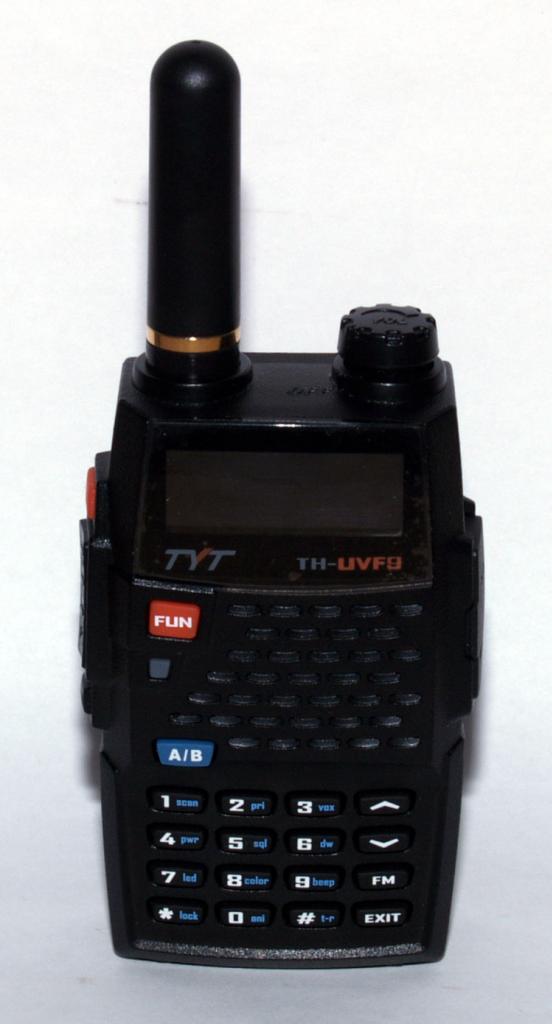

Image shows the antenna fitted to a UVF9 - PLEASE NOTE: A radio is NOT included with the antenna!

Specifications & Application List below:

  • Model: S618-SMAM

S618-SMAM SPECIFICATIONS

Frequency Range ------------------------ 145/435 MHz

Impedance --------------------------------- 50 Ohm

VSWR ---------------------------------------- less than 1.5

Gain ------------------------------------------ 2dBi

Radiation ----------------------------------- Omni

Polarization -------------------------------- Vertical

Max. Power Input-Watts ----------------- 20 W

Height ---------------------------------------- 501 mm

Connector ----------------------------------- SMA Male

1 x Antenna
Baofeng UV-3R (NOT UV-3R+)

KYD IP-670UV

TYT TH-UV3R

Vero UV-X4

Vero UV-X5

Yaesu FT-60/VX-1/VX-2/VX-3 Zastone ZT-2R

NB: NOT suitable for the TYT TH-UVF9
