TYT TH-9800 "PLUS" Quad band 10m/4m/2m/70cm Mobile Transceiver

£209.99

Sold Out

This latest version of the TYT TH-9800 "PLUS" (incorporating the latest upgraded components and firmware) covers the 4 metre band in place of the 6 metre coverage offered on the first version, so it will undoubtedly find favour with 4 metre enthusiasts. The radio also covers the 10- and 2 metre amateur bands with 70 cm capability as a bonus, while the wideband receiver section covers 26 to 33 MHz, 66 to 88 MHz, 108 to 180 MHz (with AM mode for airband reception), 350 to 512 MHz, and 750 to 950 MHz.

Other features include twin VFO's with separate left- & right-hand controls & simultaneous receive capability, cross band repeat function and four selectable power levels. As such it's a future-proof option for Foundation- and Intermediate Amateur Radio licence holders. Maximum power output is 50 Watt on 29 MHz & 145 MHz, 40 Watt on 430 MHz and 30 Watt on 70 MHz. The radio also supports 50 CTCSS & 104 DCS tones as well as having a 1750 Hz burst tone for repeater access.

The TH-9800 has 800 memory channels and can be programmed from a Windows PC using an optional USB programming cable.







  • Model: TH-9800-4M






TH-9800 KEY FEATURES:

Frequency Range (MHz): Left Band: RX: 26 - 30, 66 - 88, 108 - 180, 350 - 512, 750 - 950. TX: 28.000 - 29.700, 70 - 72, 144-146, 430 - 440. Right Band: RX: 134 - 180, 400 - 512. TX: 144 - 146, 430 - 440.
Quad-Band
Twin VFO with Dual Frequency Display
Simultaneous Receive & Cross Band repeat Capability
Digital Signal Processing System
Four Output Power Levels - 5/10/20/50 W (40 W UHF))
Multifunction Microphone with Numeric Keypad for direct frequency input
AM mode for Airband Reception
800 Programmable Memory Channels
50 CTCSS and 104 DCS Programmable Tones
1750 Hz Burst Tone for Repeater Activation
Selectable Channel Steps: 2.5/6.25/7.5/8.33/10/12.5/15/25/30/50/100 kHz
DTMF Tone Generator
Windows PC programmable via optional USB/Serial Cable

TH-9800 TECHNICAL SPECIFICATIONS:

General

Frequency Coverage (MHz) Left Band: RX: 26 - 30, 66 - 88, 108 - 180, 350 - 512, 750 - 950. TX: 28.000 - 29.700, 70 - 72, 144-146, 430 - 440. Right Band: RX: 134 - 180, 400 - 512. TX: 144 - 146, 430 - 440.
Memory Channels 800

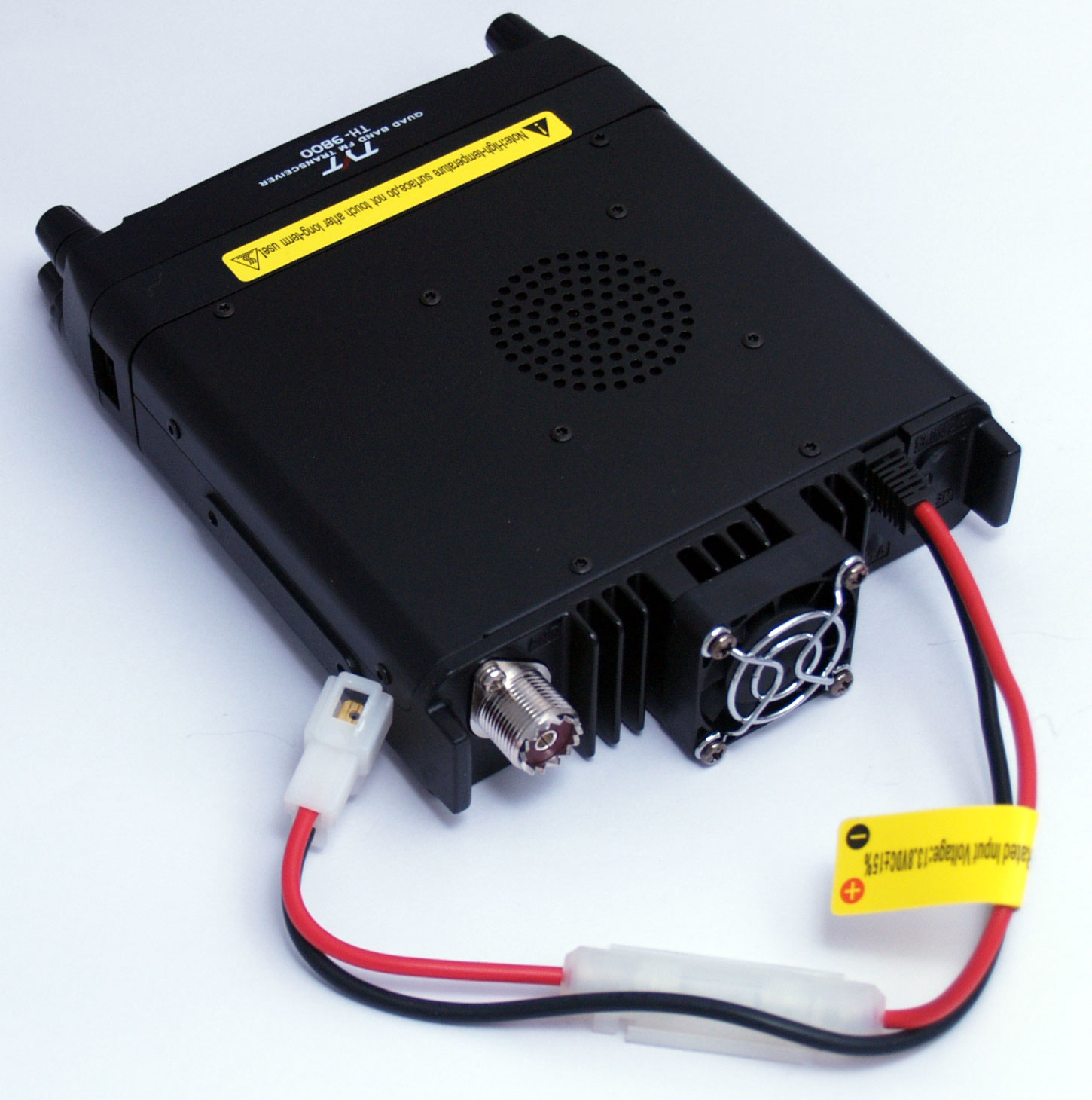

Antenna Connector SO239
Antenna Impedance 50 Ω
Frequency Step (selectable) 2.5/6.25/7.5/8.33/10/12.5/15/25/30/50/100 kHz
Supply Voltage 12 - 14 V DC (negative ground)
Frequency Stability (-20 to +60 C) 5.0 ppm
Operating Temperature -20 to +60 C
Current Draw RX: 0.5 A (squelched), TX: 8.5 A (max)
Dimensions (W x H x D) 140 x 41.5 x 168 mm
Weight 1200 g

Transmitter

RF Power Output (Watts) 50 (29 MHz & 145 MHz)/40 (430 MHz)/30 (70 MHz)
Modulation Type F3E (FM)

Receiver

Intermediate Frequencies 49.95 MHz/450 kHz (left band), 38.85 MHz/450 kHz (right band)
Sensitivity (12 dB SINAD) < 0.2 V
Squelch Sensitivity 0.16 V
Selectivity 12 kHz/30 kHz
Audio Output Power (8 ohms) 2 W (5 % THD)
All specifications subject to change without notice

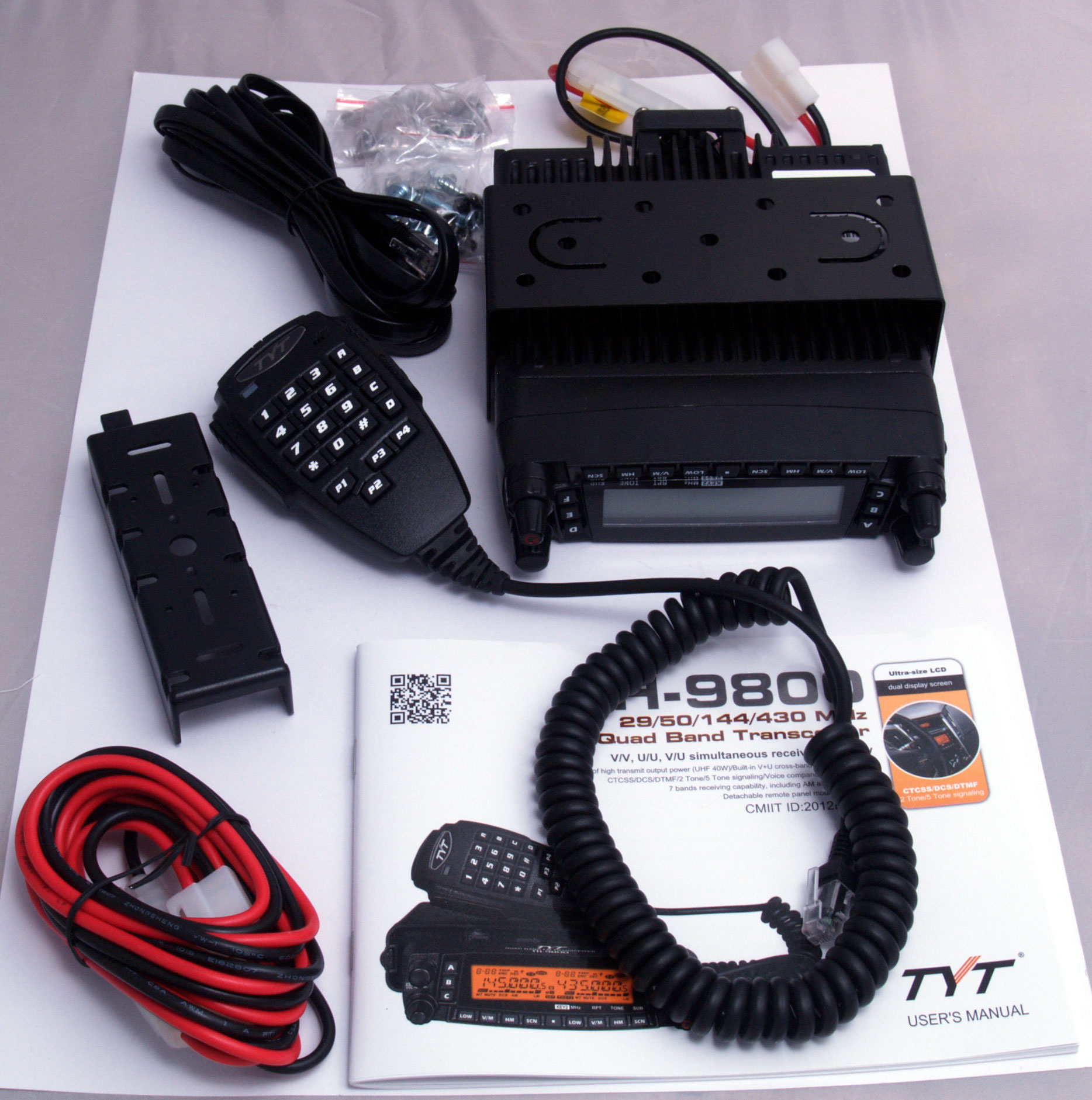

PACKAGE CONTENTS:

1 x TYT TH-9800 Quad Band Amateur Transceiver Main Unit
1 x DTMF Microphone with Coiled Cable
1 x Main Unit Mounting Bracket
1 x DC Power Cable with Fuse Holders
1 x Separation Cable for Remote Front Panel Use
1 x Mounting Bracket for Remote Front Panel Use
1 x Screw Pack
1 x Microphone Holder Bracket
1 x English Instruction Manual

29/70/144/430 MHz amateur radio use Amateur Radio Use

TH-9800 Programming Software TH-9800 Programming Software

Win98Me2k Drivers USB/Serial Drivers for Windows 98/Me/2000/XP (32-bit ONLY)

Windows Vista Drivers USB/Serial Drivers for Windows Vista (32-bit ONLY)

Windows 7 Drivers USB/Serial Drivers for Windows 7 (32-bit ONLY)
