TYT TH-UVF9 2m/70cm dualband handheld transceiver with dual frequency display

£37.99

Add to Cart:

***AS REVIEWED IN THE DECEMBER 2012 EDITION OF RADCOM***

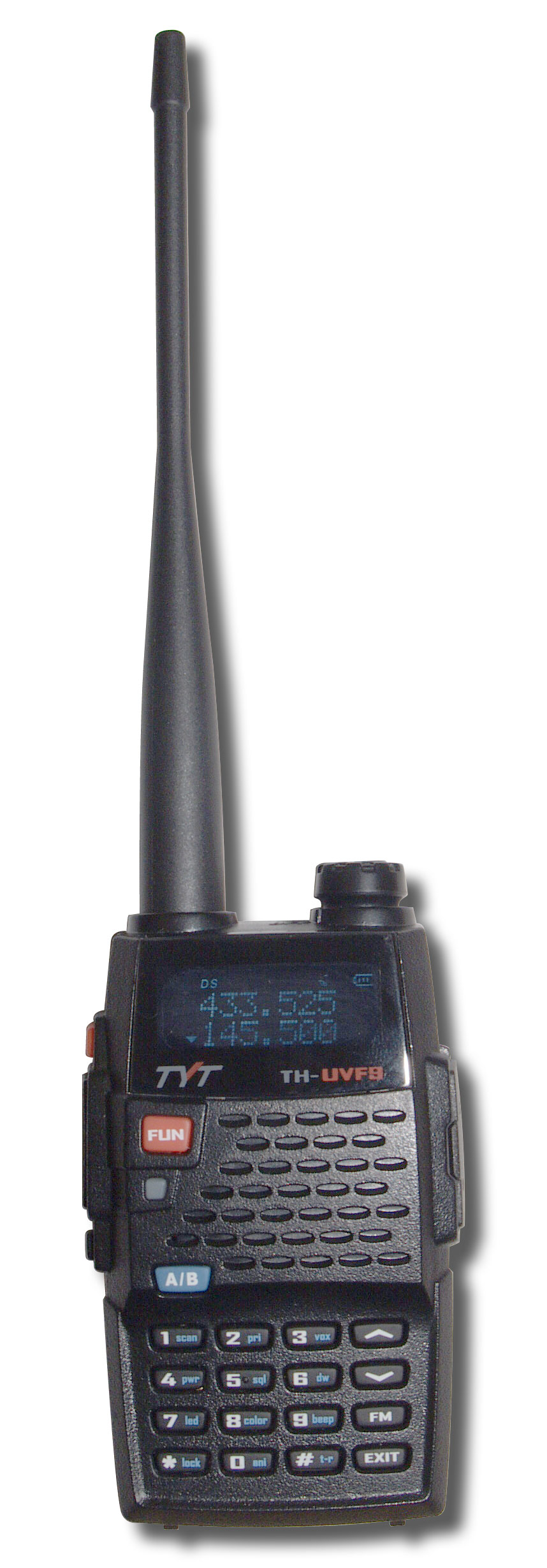

TYT TH-UVF9 2m/70cm dualband compact handheld

5 Watt amateur transceiver with dual frequency display.

UK 3-pin power supply/charger, 12V Car charger, belt clip & wrist strap included.






TYT'S UVF9 represents the next step up the ladder from the cheap & cheerful UV-5R.  It's similar in size but boasts a more stylish design, and features a maximum output power of 5 Watts, alphanumeric LCD display, numeric keyboard, and switchable voice prompt.

In the box you'll also find both a 3-pin UK charger AND a 12V car charger; a belt clip & a wrist strap.

The 7.4V 1600 mAh Li-Ion battery incorporates the radio's charging socket, so spare batteries can be charged  independently of the radio.

The radio is CE- and FCC-approved and ROHS compliant.





  • Model: TH-UVF9



KEY FEATURES:


Frequency Range: 136-174 & 400-480MHz
Dual Band
Dual Frequency Display
Dual Watch Facility
Digital Signal Processing Squelch System
High/Low Output Power (5/0.5 Watts)
Numeric Keypad for direct frequency input
Switchable Voice Prompt
Two banks of 128 Programmable Memory Channels (256 in total)
50 CTCSS and 105 DCS Programmable Tones
CTCSS/DCS Tone Search Facility
VOX Function
1750 Hz Burst Tone for Repeater Activation
FM Radio Function (87.0MHz-108.0MHz) with 25 Programmable Memories
Removable High gain Dual band Antenna (SMA Male type)
Large Two Line Alphanumeric LCD Display with programmable backlight
Alarm Function
Low Battery Alert
Battery Saver Feature
Transmission Timeout Timer
Keypad Lock
Selectable Channel Steps: 2.5/5/6.25/10/12.5/25KHz
DTMF Tone Generator
Windows PC programmable via optional USB/Serial Cable



TH-UVF9 TECHNICAL SPECIFICATIONS:

General
Frequency Coverage (RX/TX) VHF 136-174 MHz/UHF 400-480 MHz
Memory Channels 2 x 128
Antenna Connector SMA Female
Frequency Step (selectable) 2.5/5/6.25/10/12.5/25 kHz
Battery Voltage 7.4 V
Battery Capacity 1600 mAh
Frequency Stability (-20° to +60° C) 2.5 ppm
Operating Temperature -20° to +60° C
Antenna Impedance 50 ohms
Dimensions (W x H x D) 63 x 128 x 33 mm
Weight (with battery & antenna) 200 g

Transmitter

RF Power Output (maximum) 5 Watts
Modulation Type F3E
Transmitting Current 1.6 A @ 5W
Spurious Radiation 7 µW

Receiver

Selectivity 65 dB
Spurious Response Rejection 65 dB
Audio Output Power (8 ohms)    1 Watt @ 10% THD
Intermodulation Distortion 60 dB
Standby Current 75 mA

All specifications subject to change without notice

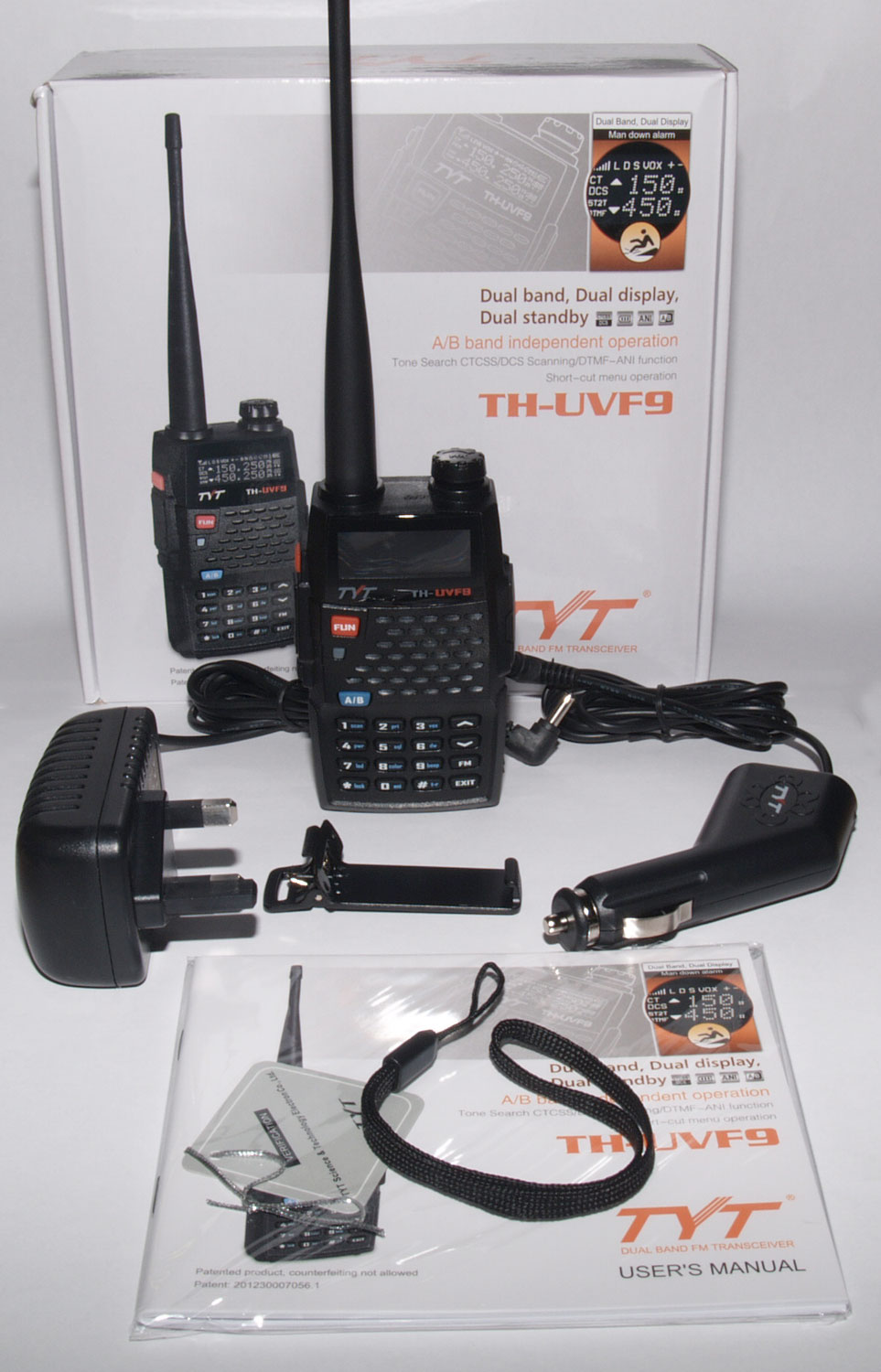

PACKAGE CONTENTS:


1 x TYT TH-UVF9 Dualband Radio
1 x 1600 mAh Lithium-ion Battery
1 x Dualband (2m/70cm) Antenna
1 x Belt Clip
1 x English Instruction Manual
1 x 12V Car Charger
1 x Charger/PSU with UK 3-pin mains plug
1 x Wrist Strap


Amateur Radio use (appropriate licence required).

TH-UVF9 User Manual TH-UVF9 User Manual

TH-UVF-9 Programming Software TH-UVF-9 Programming Software

Win98Me2k Drivers USB/Serial Drivers for Windows 98/Me/2000/XP (32-bit ONLY)

Windows Vista Drivers USB/Serial Drivers for Windows Vista (32-bit ONLY)

Windows 7 Drivers USB/Serial Drivers for Windows 7 (32-bit ONLY)

Data file for TH-UVF9 Programming Software - IARU Region 1 2m & 70cm Repeaters Data file for TH-UVF9 Programming Software - IARU Region 1 2m & 70cm Repeaters
